Size and weight
- Height:
- 51.1 cm (20.1 inches)
- Width:
- 20.6 cm (8.1 inches)
- Depth:
- 47.5 cm (18.7 inches)
- Weight:
- 8-core 18.7 kg (41.2 pounds)1
- Quad-core 18.1 kg (39.9 pounds)1
Processing
- 8-core (standard configuration)
- Two 2.4GHz Quad-Core Intel Xeon E5620 “Westmere” processors
- 12MB of fully shared L3 cache per processor
- Turbo Boost dynamic performance up to 2.66GHz
- Hyper-Threading technology for up to 16 virtual cores
- Quad-core (standard configuration)
- One 2.8GHz Quad-Core Intel Xeon W3530 “Nehalem” processor
- 8MB of fully shared L3 cache per processor
- Turbo Boost dynamic performance up to 3.06GHz
- Hyper-Threading technology for up to 8 virtual cores
- Advanced Intel micro-architecture
- Integrated memory controller
- 128-bit SSE4 SIMD engine
- 64-bit data paths and registers
- Optimised for energy efficiency
Configure your Mac Pro now, only at the Apple Online Store.
Processor upgrade options
Connections and audio
- Four FireWire 800 ports (two on front panel, two on back panel)
- Five USB 2.0 ports (two on front panel, three on back panel)
- Two USB 2.0 ports on included keyboard
- Front-panel headphone mini-jack and internal speaker
- Optical digital audio input and output TOSLINK ports
- Analog stereo line-level input and output mini-jacks
- Multi-channel audio through Mini DisplayPort
Graphics and displays
- Double-wide, 16-lane PCI Express 2.0 graphics slot with one
of the following graphics cards installed:
- ATI Radeon HD 5770 with 1GB of GDDR5 memory, PCI Express 2.0, two Mini DisplayPort outputs and one dual-link DVI port
- ATI Radeon HD 5870 with 1GB of GDDR5 memory, PCI Express 2.0, two Mini DisplayPort outputs and one dual-link DVI port
- Option to install two ATI Radeon HD 5770 cards
- Support for up to six displays2
- Support for digital resolutions up to 2560x1600 pixels
- Support for analog resolutions up to 2048x1536 pixels
- Video adapters available for:
- Additional DVI output using Mini DisplayPort to DVI Adapter (optional)
- Additional dual-link DVI output using Mini DisplayPort to Dual-Link DVI Adapter (optional)
- VGA output using Mini DisplayPort to VGA Adapter or DVI to VGA Display Adapter (optional)
Memory
- Dual-processor systems
- 2.4GHz system: 1066MHz DDR3 ECC SDRAM
- 2.66GHz and 2.93GHz systems: 1333MHz DDR3 ECC SDRAM
- Eight memory slots (four per processor) supporting up to 32GB of main memory using 1GB, 2GB or 4GB DIMMs
- Single-processor systems
- 2.8GHz and 3.2GHz systems: 1066MHz DDR3 ECC SDRAM
- 3.33GHz system: 1333MHz DDR3 ECC SDRAM
- Four memory slots supporting up to 16GB of main memory using 1GB, 2GB or 4GB DIMMs
Communications
- Built-in AirPort Extreme 802.11n Wi-Fi wireless networking;3 IEEE 802.11a/b/g compatible
- Bluetooth 2.1 + Enhanced Data Rate (EDR) wireless technology
- Two independent 10/100/1000BASE-T Ethernet (RJ-45) interfaces with support for jumbo frames
Environmental Status Report
- BFR-free
- PVC-free (internal cables)
- Highly recyclable aluminium enclosure
- Meets ENERGY STAR 5.0
requirements4 - Rated EPEAT Gold4
Electrical and operating requirements
- Line voltage: 100-120V AC or 200-240V AC (wide-range power supply input voltage)
- Frequency: 50Hz to 60Hz single phase
- Current: Maximum of 12A (low-voltage range) or 6A (high-voltage range)
- Operating temperature: 10° to 35° C
(50° to 95° F) - Storage temperature: -40° to 47° C
(-40° to 116° F) - Relative humidity: 5% to 95% non-condensing
- Maximum operating altitude: 3,000 metres
PCI Express expansion
- Three open full-length PCI Express expansion slots5
- One PCI Express 2.0 x16 slot
- Two PCI Express 2.0 x4 slots
- All slots provide mechanical support for 16-lane cards
- 300W combined maximum for all PCI Express slots
Storage
- Four 3.5-inch cable-free, direct-attach drive bays with built-in independent 3Gb/s Serial ATA channels; four internal drive carriers included
Up to 8TB of internal storage6 in bays 1 to 4 using
hard drives or solid-state drives in the following capacities:
- 1TB or 2TB hard drives, Serial ATA 3Gb/s, 7200 rpm, 32MB cache
- 512GB solid-state drive, Serial ATA 3Gb/s
- Optional Mac Pro RAID Card with 512MB cache and 72-hour cache battery backup7
- 18x SuperDrive with double-layer support (DVD±R
DL/DVD±RW/CD-RW)
- Writes DVD+R and DVD-R discs at up to 18x speed
- Writes DVD+R DL and DVD-R DL discs at up to 8x speed
- Writes DVD+RW discs at up to 8x speed
- Writes DVD-RW discs at up to 6x speed
- Reads DVDs at up to 18x speed
- Writes CD-R and CD-RW discs at up to 32x speed
- Reads CDs at up to 32x speed
- One open optical drive bay for optional second SuperDrive

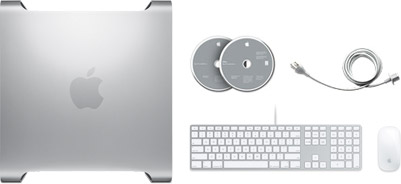

What’s included
In the box:
- Mac Pro
- Power lead
- Apple Keyboard with Numeric Keypad
- Magic Mouse
- USB keyboard extension cable
- Install/restore DVDs
- Printed and electronic documentation
Included software:
Mac OS X Snow Leopard
Includes iTunes, Time Machine, Quick Look, Spaces, Spotlight, Dashboard, Mail, iChat, Safari, Address Book, QuickTime, iCal, DVD Player, Photo Booth, Front Row and Xcode Developer Tools.
iLife
Includes iPhoto, iMovie, iDVD, iWeb and GarageBand.
Accessories
Upgrades
- 1GB Memory Kit
- 2GB Memory Kit
- 4GB Memory Kit
- 1TB SATA Drive Kit
- 2TB SATA Drive Kit
- 512GB Solid-State Drive Kit
- Mac Pro RAID Card
- ATI Radeon HD 5770 Graphics Upgrade Kit
- Apple Dual-Channel 4Gb Fibre Channel PCI Express Card
- Apple Quad-Channel 4Gb Fibre Channel PCI Express Card
Software
- Final Cut Studio
- Final Cut Express
- Aperture
- Logic Studio
- Logic Express
- Mac OS X Server v10.6 (Unlimited-client licence)
- Apple Remote Desktop
- iWork
- FileMaker
- MobileMe
Display and Graphics
- Apple LED Cinema Display
- VESA Mount Adapter Kit
- Apple Mini DisplayPort to DVI Adapter
- Apple Mini DisplayPort to VGA Adapter
- Apple Mini DisplayPort to Dual-Link DVI Adapter
AirPort and Wireless
- Time Capsule
- AirPort Express Base Station
- AirPort Extreme Base Station
- Apple Wireless Keyboard
- Magic Trackpad
Apple Online Store
Customise your perfect Mac Pro and have it shipped to your door — free. Only at the Apple Online Store.
Configuration Options
| Priser incl. moms |
Quad-Core
(MC250LL/A) DKK 18.999,00 |
8-Core
(MC561LL/A) DKK 26.999,00 |
12-Core
(Apple Online Store only) DKK 38.499,00 |
|---|---|---|---|
| Processor | 2.8GHz Quad-Core Intel Xeon “Nehalem” | Two 2.4GHz Quad-Core Intel Xeon “Westmere” | Two 2.66GHz 6-Core Intel Xeon “Westmere” |
| Cache | 8MB fully shared L3 cache | 12MB fully shared L3 cache per processor | |
| Memory | 3GB (three 1GB DIMMs) of 1066MHz DDR3 ECC SDRAM | 6GB (six 1GB DIMMs) of 1066MHz DDR3 ECC SDRAM | |
| PCI Express 2.0 graphics | ATI Radeon HD 5770 with 1GB GDDR5 memory, two Mini DisplayPort outputs and one dual-link DVI video output | ||
| Hard disk drive | 1TB Serial ATA (3Gb/s); 7200 rpm | ||
| Optical drive | 18x SuperDrive with double-layer support (DVD±R DL/DVD±RW/CD-RW) | ||
| Wireless | Built-in AirPort Extreme 802.11n Wi-Fi3 and Bluetooth 2.1 + EDR (Enhanced Data Rate) wireless technology | ||
| PCI Express | Three open full-length PCI Express 2.0 expansion slots with mechanical support for 16-lane cards; 300W combined maximum for all PCI Express slots | ||
