iMac back shotThe most powerful dome this side of the Capitol.
Tech Specs:G4 Processor:SuperDrive:Graphics:Wireless:Software

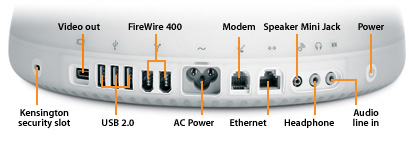

iMac Ports Thanks to some nifty hardware engineering, the iMac’s dome-shaped base houses the entire computer: central processing unit (CPU), logic board, hard drive, optical drive, and power supply. Fact is, inside this easy-to-use powerhouse, you’ll find everything you need to make movies, burn your own music CDs and DVDs and manage your digital photo albums. There’s even a music store that lets you sample, buy and download your favorite music in digital format. And because it has such a small footprint (just 10.6 inches in diameter), you can put your iMac in places where you previously might not have considered keeping a computer, like your bedroom, living room or kitchen — just about wherever, in fact, you’d like to use it. What’s more, since the iMac is wireless-ready, you don’t even have to place it near a phone jack. Simply pop in an AirPort Extreme Card, hook up an AirPort Extreme Base Station to your phone line, DSL connection or cable modem, and you can surf the Internet wirelessly.

Configurations
$ $1,299.00 $1,799.00 > $2,448.00
Display 15-inch (viewable) TFT active-matrix LCD, 1024 by 768 pixels, millions of colors 17-inch (viewable) widescreen TFT active-matrix LCD, 1440 by 900 pixels, millions of colors
Processor 1GHz PowerPC G4 1.25GHz PowerPC G4
System bus 167MHz 167MHz
Memory 256MB of PC2700 (333MHz) DDR SDRAM; supports up to 1GB 256MB of PC2700 (333MHz) DDR SDRAM; supports up to 1GB
Hard drive (1) 80GB Ultra ATA/100; 7200 rpm 80GB Ultra ATA/100; 7200 rpm
Optical drive 32x Combo (DVD-ROM/CD-RW) 4x SuperDrive (DVD-R/CD-RW)
Graphics support NVIDIA GeForce4 MX with 32MB of DDR SDRAM NVIDIA GeForce FX 5200 Ultra with 64MB of DDR SDRAM
Ports Two FireWire 400 ports, three USB 2.0 ports on computer, two USB 1.1 ports on keyboard, VGA output port (2), S-video and composite video output (2), headphone jack, Apple speaker minijack, audio line in jack
VGA video mirroring Yes. Requires adapter, sold separately.
S-video and composite video output Yes. Requires adapter, sold separately.
Networking Built-in 10/100BASE-T Ethernet and 56K V.92 modem (3)
Wireless AirPort Extreme ready(4); internal Bluetooth module available as a build-to-order option
System software Mac OS X
Software Mail, iChat, Safari, Sherlock, Address Book, QuickTime, iLife (includes iTunes, iPhoto, iMovie, and iDVD), iSync, iCal, DVD Player, AppleWorks, Mac OS X Chess, and Classic environment; Microsoft Internet Explorer, EarthLink (includes 30 days of free service), AOL, Quicken 2003 Deluxe,World Book 2003 Edition, Tony Hawk’s Pro Skater 4, Deimos Rising, Sound Studio, and Acrobat Reader; Apple Hardware Test
Hardware accessories Apple Keyboard, Apple Mouse, Apple Pro Speakers, modem cable
Limited Warranty and Service Your iMac comes with 90 days of telephone support and a one-year limited warranty. Purchase the AppleCare Protection Plan and get three years of service and support. Only the AppleCare Protection Plan provides you with direct telephone support from Apple technical experts and the assurance that repairs will be handled by Apple-certified technicians using genuine Apple parts. For more information, visit Apple support or call 800-823-2775.
Internet access All models also include 30 days of free Internet service through EarthLink. Internet access requires a compatible Internet service provider; fees may apply.


Technical Specifications

Processor and memory
  • 1GHz or 1.25GHz PowerPC G4 processor with Velocity Engine
  • 256K on-chip level 2 cache at full processor speed
  • 167MHz system bus
  • 256MB of PC2700 (333MHz) DDR SDRAM expandable to 1GB; one 184-pin DIMM and one open user-accessible SO-DIMM slot

Storage
  • 80GB Ultra ATA/100 7200-rpm hard disk drive (1)
  • One of the following optical drives:
    • Combo drive (DVD-ROM/CD-RW): reads DVDs at up to 8x speed, writes CD-R discs at up to 32x speed, writes CD-RW discs at up to 10x speed, reads CDs at up to 32x speed
    • SuperDrive (DVD-R/CD-RW): writes DVD-R discs at up to 4x speed, reads DVDs at up to 8x speed, writes CD-R discs at up to 16x speed, writes CD-RW discs at up to 8x speed, reads CDs at up to 32x speed

Display
  • Built-in 17-inch (viewable) widescreen or 15-inch (viewable) TFT active-matrix liquid crystal display
  • Millions of colors at all resolutions
  • Typical viewing angle: 120° horizontal; 90° vertical
  • Typical brightness: 200 cd/m2
  • Typical contrast ratio: 300:1

Peripheral connections
  • Two FireWire 400 ports; 8 watts shared
  • Total of five USB ports: three USB 2.0 ports (up to 480 Mbps) on computer, two USB 1.1 ports on keyboard

  Graphics support
  • NVIDIA GeForce FX 5200 Ultra or GeForce4 MX graphics processor with AGP 4X support
  • 64MB or 32MB of dedicated Double Data Rate (DDR) video memory
  • 17-inch display resolutions: 1440 by 900 (native), 1152 by 720, 1024 by 640, and 800 by 500 pixels at 16:10 aspect ratio; 1024 by 768, 800 by 600, and 640 by 480 pixels at 4:3 aspect ratio
  • 15-inch display resolutions: 1024 by 768 (native), 800 by 600, and 640 by 480 pixels

Communications
  • Built-in 56K V.92 modem (RJ-11 connector) (3)
  • Built-in 10/100BASE-T Ethernet (RJ-45 connector)
  • Built-in antennas and expansion slot for optional 54-Mbps AirPort Extreme Card (based on 802.11g standard; 802.11b Wi-Fi certified) (4)
  • Optional internal Bluetooth

Audio
  • Built-in speaker
  • Apple Pro Speakers (7 watts each)
  • Apple Speaker minijack
  • Internal 14-watt digital amplifier
  • Headphone jack
  • Audio line in jack
  • Built-in microphone

Video
  • VGA output port for video mirroring on external display or projector (2)
  • S-video and composite video output to connect directly to a TV or projector (2)
  • Output resolutions: 640 by 480 pixels at 60Hz, 800 by 600 pixels at 75Hz, and 1024 by 768 pixels at 75Hz

  Electrical and environmental requirements
  • Meets ENERGY STAR and TCO 95 requirements
  • Line voltage: 90V to 264V AC
  • Frequency: 47Hz to 63Hz, single phase
  • Maximum continuous power: 160W (17-inch model); 130W (15-inch model)
  • Operating temperature: 50° to 95° F (10° to 35° C)
  • Storage temperature: -40° to 185° F (-40° to 85° C)
  • Relative humidity: 5% to 95% noncondensing
  • Maximum operating altitude: 10,000 feet

Size and weight (iMac with 17-inch display)
  • Height: 13.03 inches (33.1 cm) minimum; 20.0 inches (50.9 cm) maximum
  • Width: 16.7 inches (42.3 cm) minimum; 17.7 inches (44.9 cm) maximum
  • Depth: 10.6 inches (27.0 cm) minimum; 16.7 inches (42.3 cm) maximum
  • Diameter of base: 10.6 inches (27.0 cm)
  • Weight: 22.8 pounds (10.4 kg)(5)

Size and weight (iMac with 15-inch display)
  • Height: 12.95 inches (32.9 cm) minimum; 20.0 inches (50.9 cm) maximum
  • Width: 15.1 inches (38.4 cm) minimum; 16.3 inches (41.5 cm) maximum
  • Depth: 10.6 inches (27.0 cm) minimum; 16.3 inches (41.5 cm) maximum
  • Diameter of base: 10.6 inches (27.0 cm)
  • Weight: 21.2 pounds (9.7 kg)(5)

  1. 1GB = 1 billion bytes; actual formatted capacity less.
  2. Requires adapter, sold separately.
  3. Compatible ISP and telephone services required; fees may apply. Your ISP may not support all V.92 features. Modem will function according to V.90 standards if V.92 services are not available. Actual modem speeds lower.
  4. Achieving data rates of 54 Mbps requires that all users have an AirPort Extreme Card and connect to an AirPort Extreme Base Station. If a user of a Wi-Fi certified 802.11b product joins the network, that user will get up to 11 Mbps and AirPort Extreme users will get less than 54 Mbps. Actual speed will vary based on range, connection rate, site conditions, size of network, and other factors.
  5. Weight varies by configuration and manufacturing process.
Wireless Internet access requires AirPort Extreme Card, AirPort Base Station or AirPort Extreme Base Station, and Internet access (fees may apply). Some ISPs are not currently compatible with AirPort and AirPort Extreme. Range may vary with site conditions.
Internet access requires a compatible ISP; fees may apply.
Product contains electronic documentation. Backup copy of software is included.
Product specifications are subject to change without notice.

. . .
-
